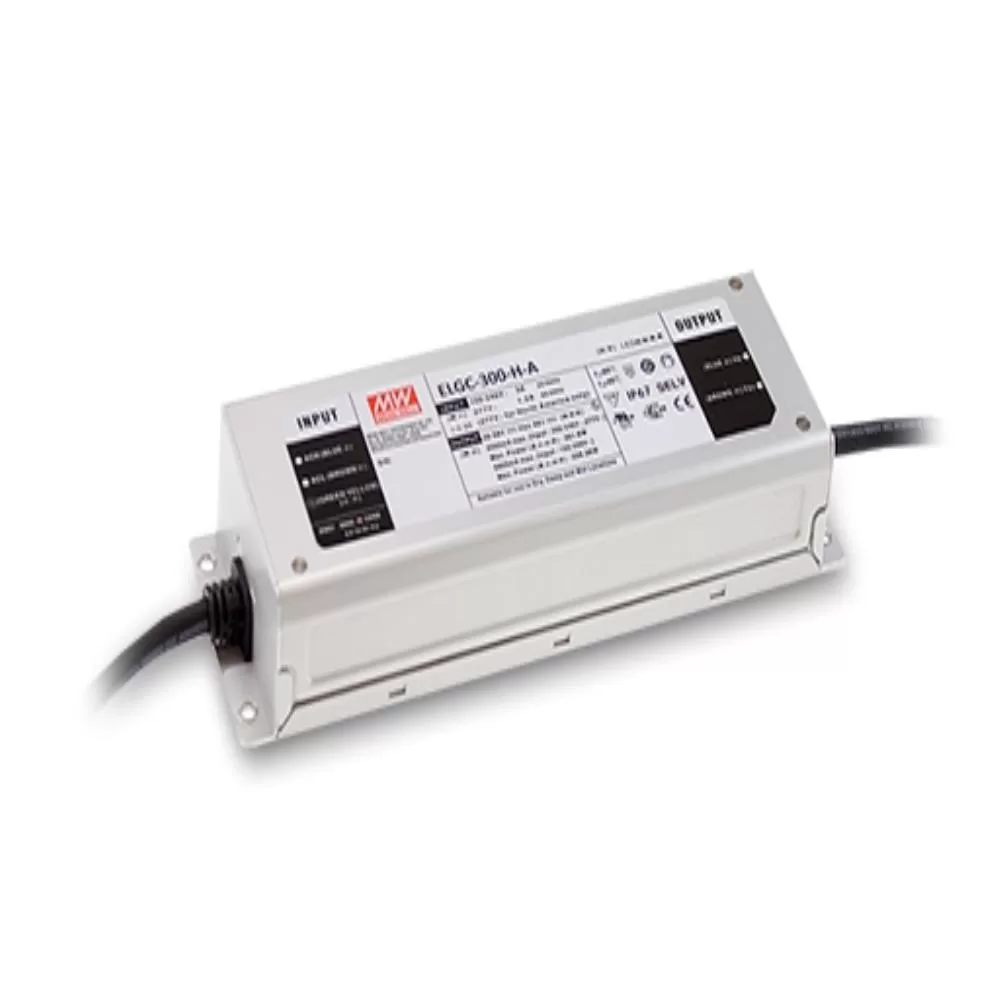

ELGC-300-L-AB Mean Well LED Driver +116~232 VDC 1300~2000mA
563.00 ر.س
LED Driver / Power Supply
+116~232VDC 1300~2000mA
Available on backorder
LED Driver / Power Supply
Brand: Mean Well
Model: ELGC-300-L-AB
output: +116~232 VDC 1300~2000mA
100~305VAC input range
Constant current (C.C.) output
Built-in active PFC function
No load/standby power consumption <0.5W
Metal case, IP67/IP65 design for indoor or outdoor installations
Function options:
output adjustable via potentiometer; 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance, dim-to-off); smart timer dimming; DALI; auxiliary DC output (ELG-150-C BE-Type)
Datasheet:
| Shipping Weight | 1.7125 kg |
|---|---|
| Dimensions | 24.6 × 7.7 × 3.95 cm |
| Brand |
Mean Well |
| Input Voltage (VAC) |
100~305 |
| IP Rating |
IP 65 |
| Model |
ELGC-300-L-AB |
| Output Current (A) |
1300~2000mA |
| Output Power (W) |
300 |
| Output Voltage (VDC) |
+116~232 |
| Product Dimension (LxWxH) (mm) |
246x77x39.5 |
| Product Weight (kg) |
1.37 |
| ROHS |
ROHS |
| Safety |
CB ,CCC ,CE ,EAC ,ENEC |
| Series |
ELG-C |
| Shape |
Metal Case |
| LED Driver Type |
Constant Current ,Constant power |
| Technology |
AC/DC |
| Dimming |
Io adjustable through built-in potentiometer & 3 in 1 dimming (0~10Vdc or 10V PWM signal or resistance) |
